KR-603 Pinwheel reticle 10mm in 100 divisions. 100 divisions each axis, 50 divisions each leg. Learn how to make accurate measurements when using your reticle h… Read more
SKU:
Measurement: Metric
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

KR-603 Pinwheel reticle 10mm in 100 divisions. 100 divisions each axis, 50 divisions each leg. Learn how to make accurate measurements when using your reticle here and learn about calibrating your microscope here. Reticle is available in a number of different diameters; select when ordering.

  • Divisions: 0.10mm with 1x objective.
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Tolerances: Unless otherwise stated ± 0.0002" (± 5 microns)
  • Glass Thickness: 1.5mm ± 0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.
  • Numbering Options:

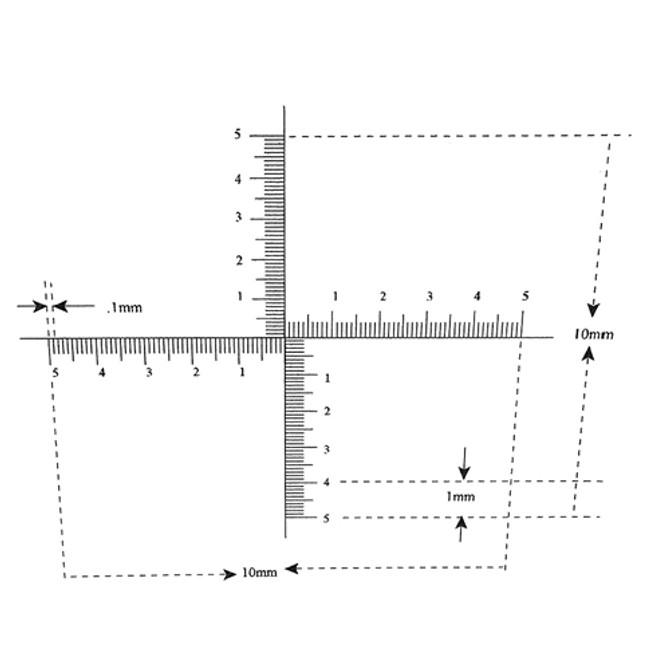

    KR-603 = Numbered 5-0-5

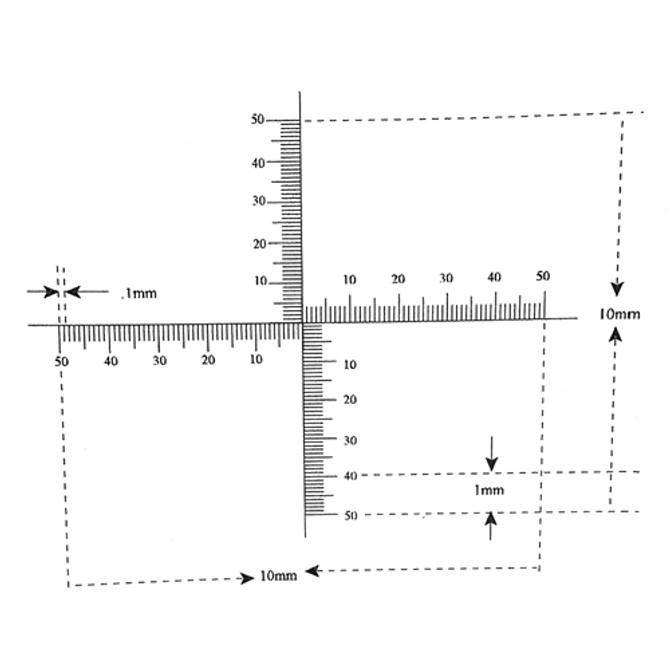

    KR-603A = Numbered 50-0-50

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
