Reticle Grid 0.5mm Squares 300 Total Labeled
Reticle Grid 0.5mm Squares 300 Total Labeled
Reticle Grid 0.5mm Squares 300 Total Labeled

Reticle Grid 0.5mm Squares 300 Total Labeled

No reviews yet Write a Review
KR-453 glass eyepiece reticle. Grid 15mm x 15mm. 300 squares total (30x30). Diagonal = 21.21mm. Labeled with letters vertical (A-DD) and numbers horizontal (1-3… Read more
SKU:
Measurement: Metric
Square Size: 0.5mm
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

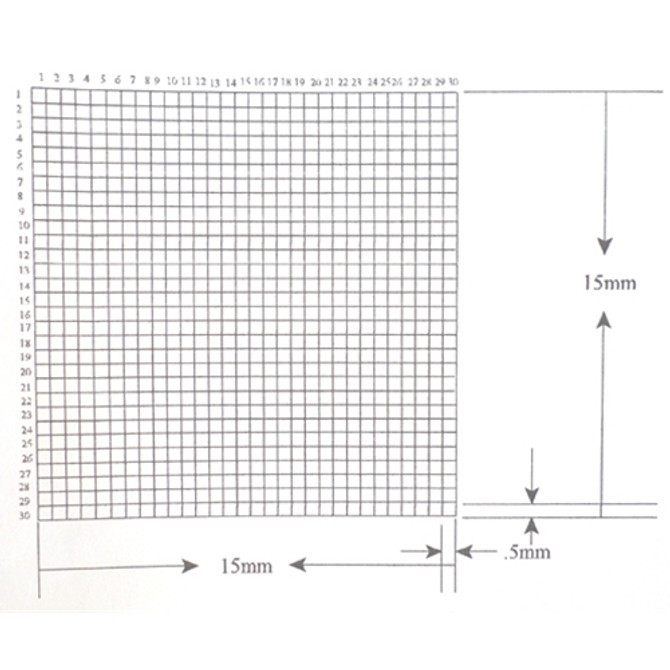

KR-453 glass eyepiece reticle. Grid 15mm x 15mm. 300 squares total (30x30). Diagonal = 21.21mm. Labeled with letters vertical (A-DD) and numbers horizontal (1-30). Also available with numbers horizontal & vertical. Select below when ordering. Available in a variety of diameters, select below when ordering.

  • Each Square: 0.5mm when using 1x objective
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
