Reticle Grid 0.05mm Squares 10,000 Total
Reticle Grid 0.05mm Squares 10,000 Total
Reticle Grid 0.05mm Squares 10,000 Total

Reticle Grid 0.05mm Squares 10,000 Total

No reviews yet Write a Review

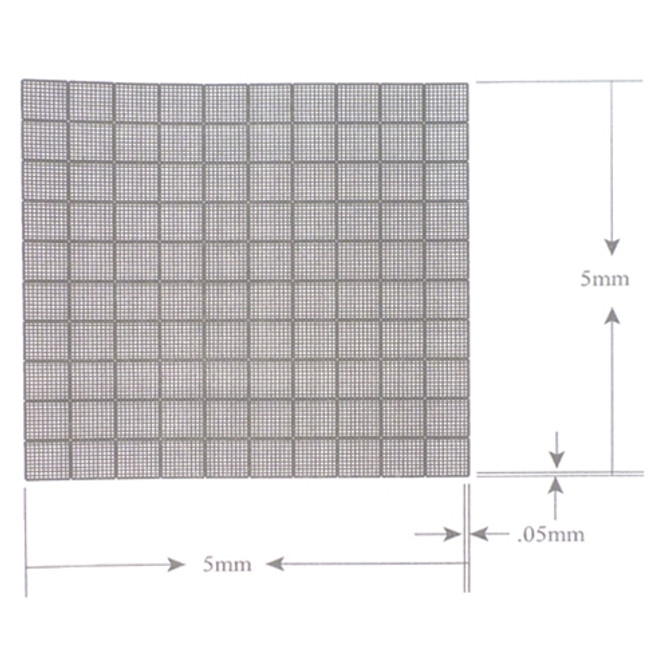

KR-441 glass eyepiece reticle. Grid 5mm x 5mm. 10,000 squares total (100x100). Diagonal = 7.07mm. Available in a variety of diameters; select when ordering. Ava… Read more
SKU:
Measurement: Metric
Square Size: 0.05mm
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

KR-441 glass eyepiece reticle. Grid 5mm x 5mm. 10,000 squares total (100x100). Diagonal = 7.07mm. Available in a variety of diameters; select when ordering. Available with no letters and numbers or letters horizontal (A-J) and numbers vertical (1-10). Every 10th line is accented.

  • Each Square: 0.05mm when using 1x objective
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.2mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
