Reticle Dashed Cross-Line with 45 Degree Segment
Reticle Dashed Cross-Line with 45 Degree Segment
Reticle Dashed Cross-Line with 45 Degree Segment

Reticle Dashed Cross-Line with 45 Degree Segment

No reviews yet Write a Review
KR-308 Dashed crossline glass eyepiece reticle with 45° angles in all quadrants. Available in a variety of diameters (select below when ordering). Lines: C… Read more
SKU: KR308
Reticle Option: No Scale
$125.00
Hurry up! Current stock:
icon Share icon Share
Request a quote
Description

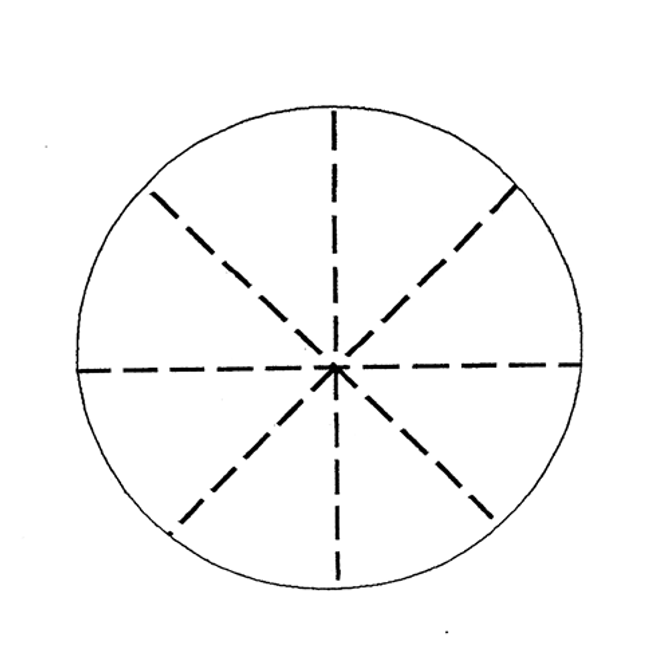

KR-308 Dashed crossline glass eyepiece reticle with 45° angles in all quadrants. Available in a variety of diameters (select below when ordering).

  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm +/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.

Frequently Bought Together

Please choose options for all selected products

Reticle Dashed Cross-Line with 45 Degree Segment
Choose Options
Choose Options Close Close

Hurry up! Current stock:

Description

KR-308 Dashed crossline glass eyepiece reticle with 45° angles in all quadrants. Available in a variety of diameters (select below when ordering).

  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm +/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
