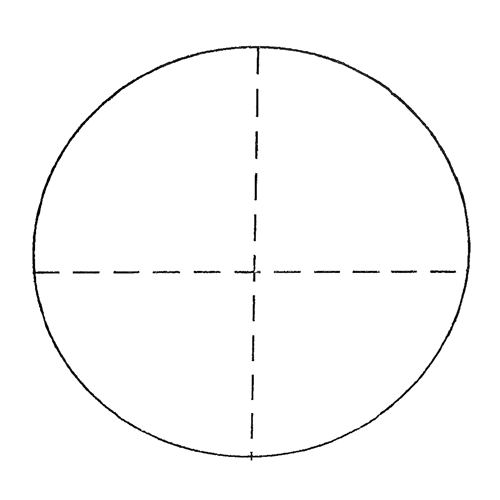

Reticle Dashed Cross-Line
Dashed crossline glass eyepiece reticles. Available in a variety of diameters (select below when ordering).
Select Crossline Widths:
Select Crossline Widths:
- KR-302 - 0.0006" line width
- KR-328 - 0.0004" line width
Chamfer: 0.010" - 0.020"
Flatness: 2 waves or better
Centering: Within 0.005"
Glass Thickness: 1.5mm +/-0.1mm
Surface Quality: 20/10
Parallelism: 2 min.
Angular Accuracy: Within 5 min. of arc
NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
